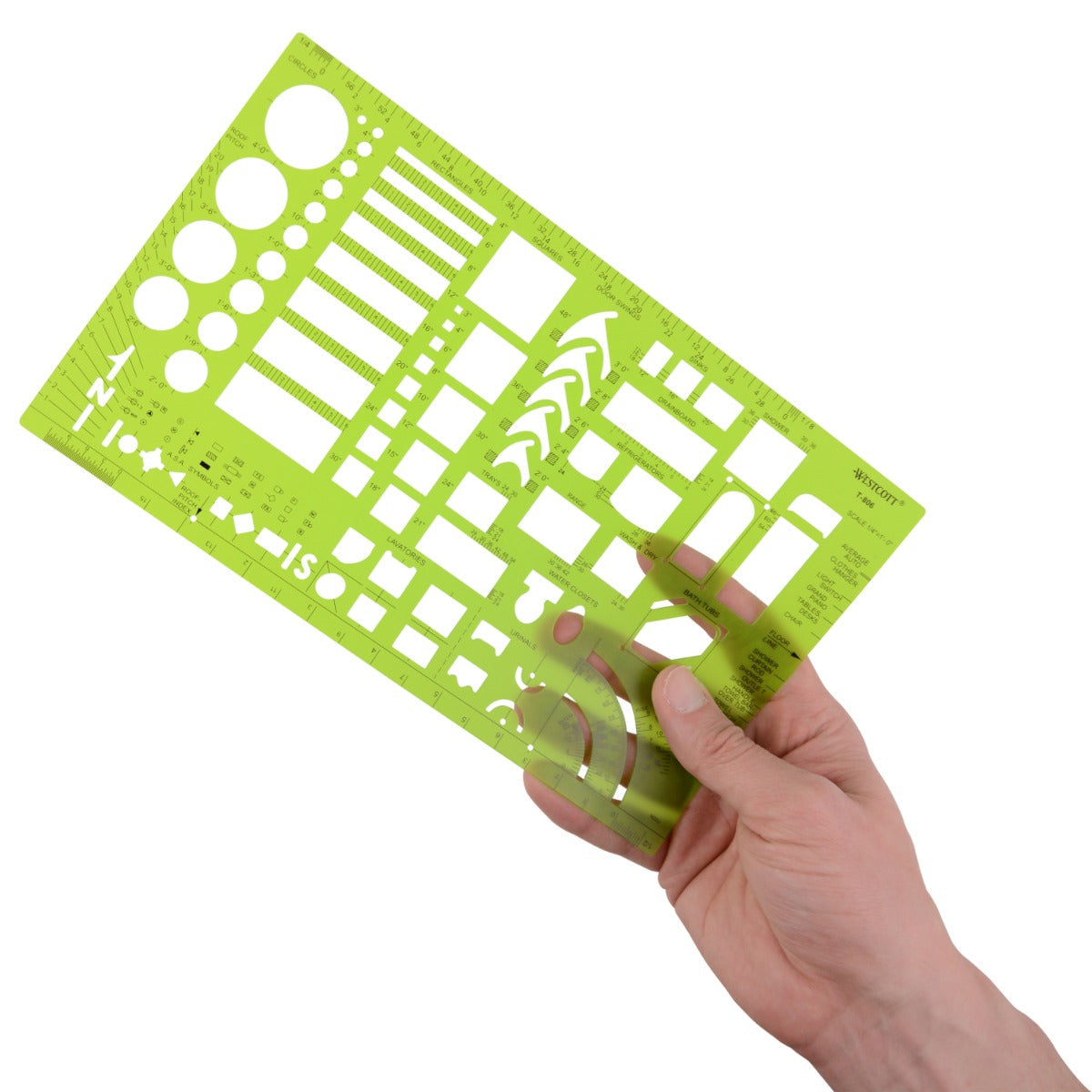

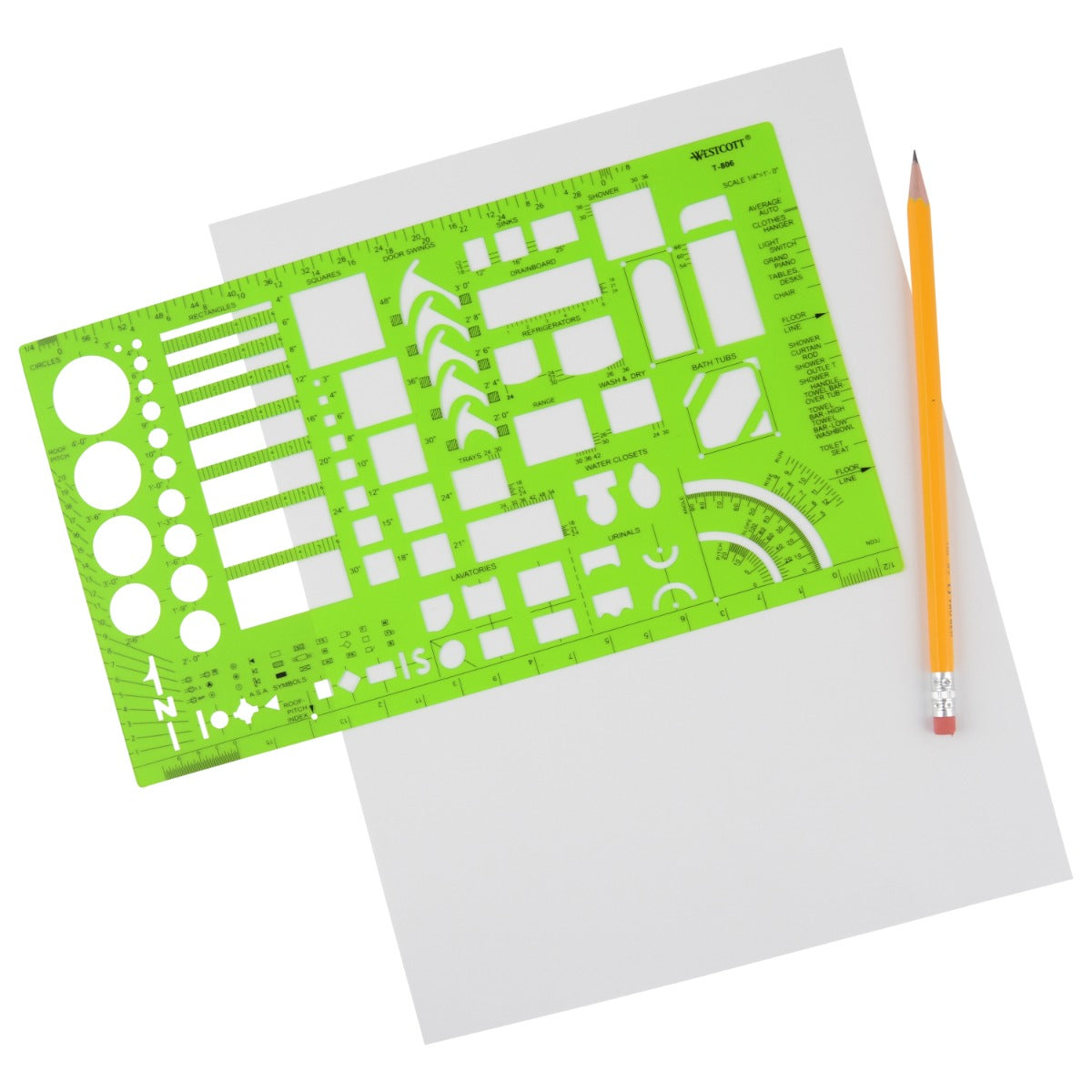

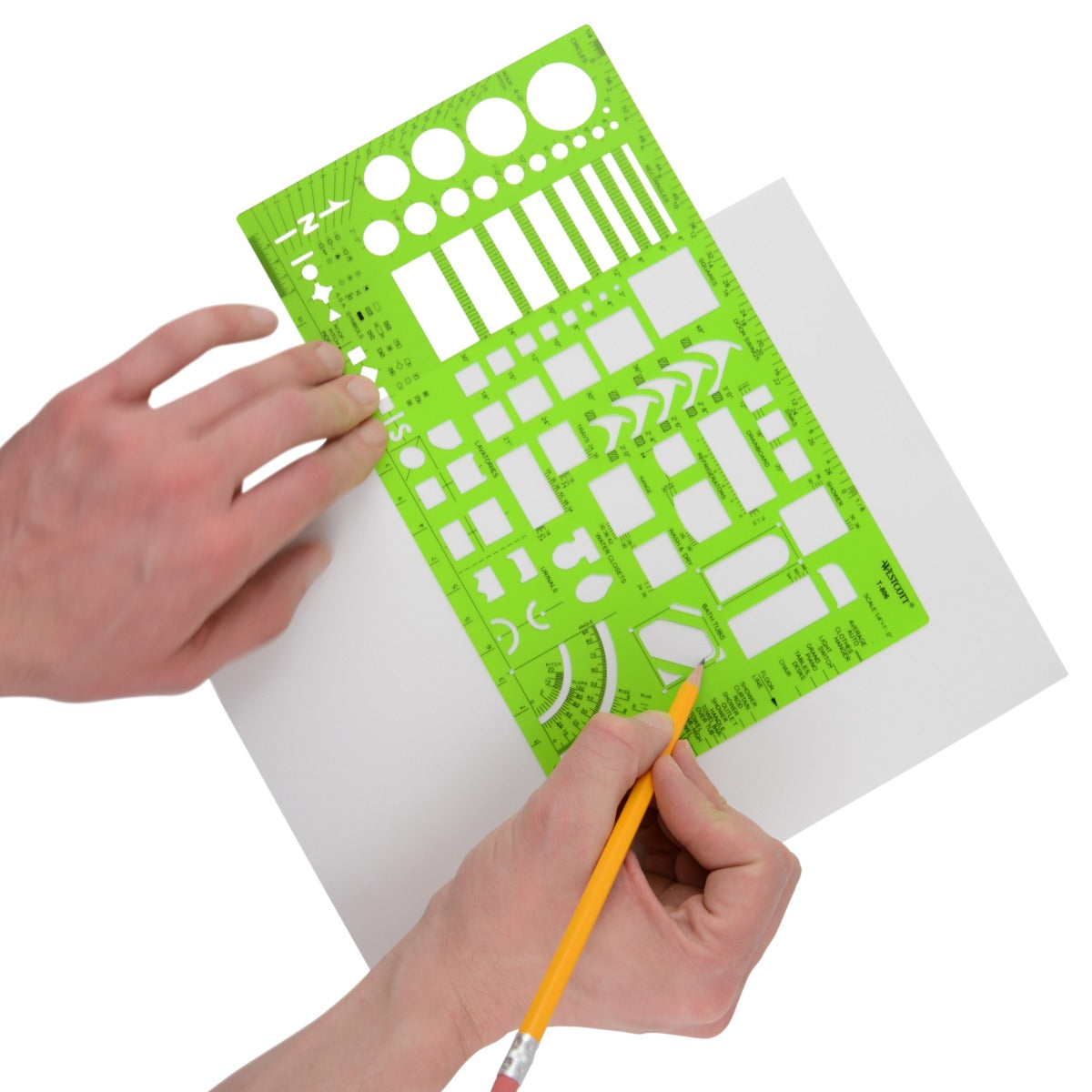

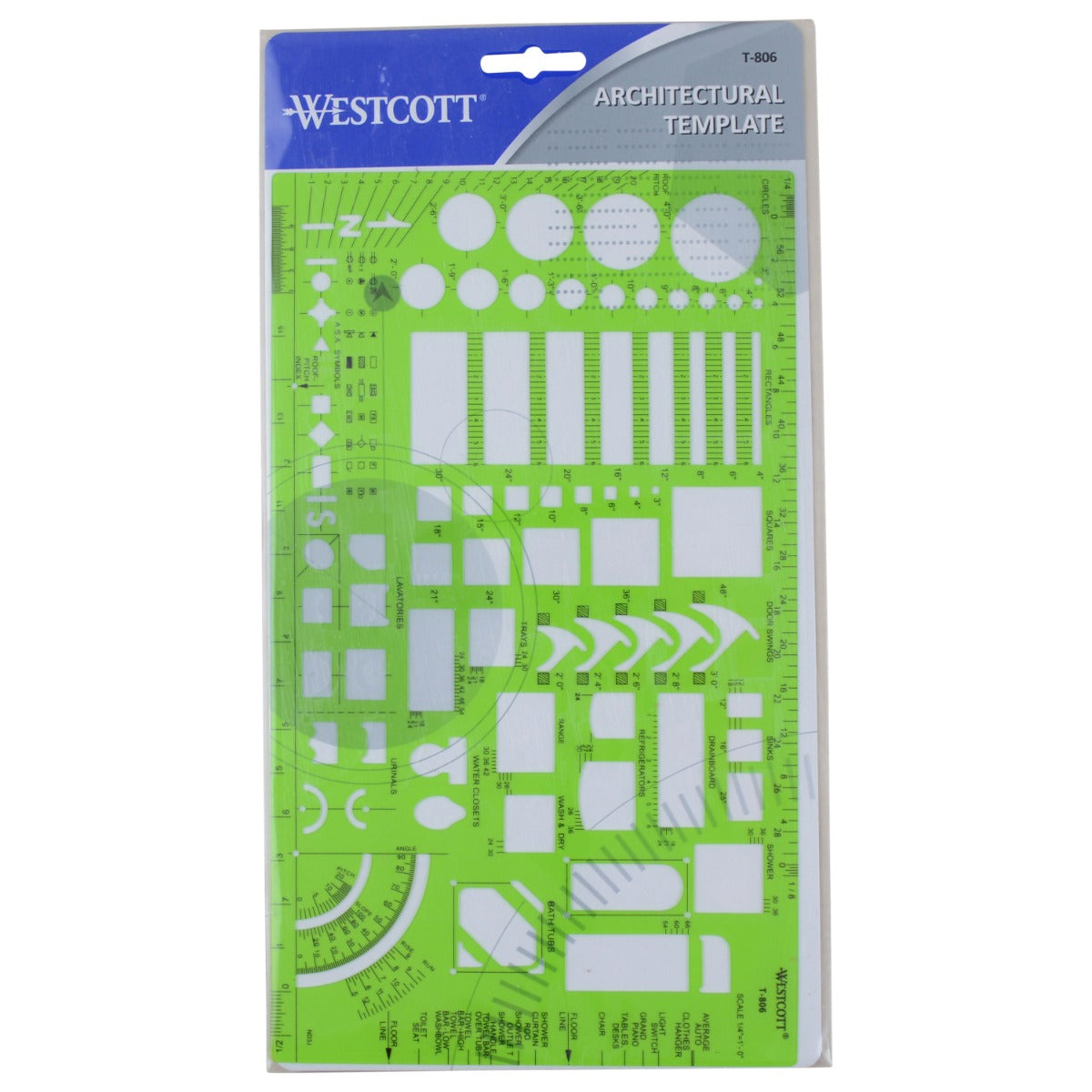

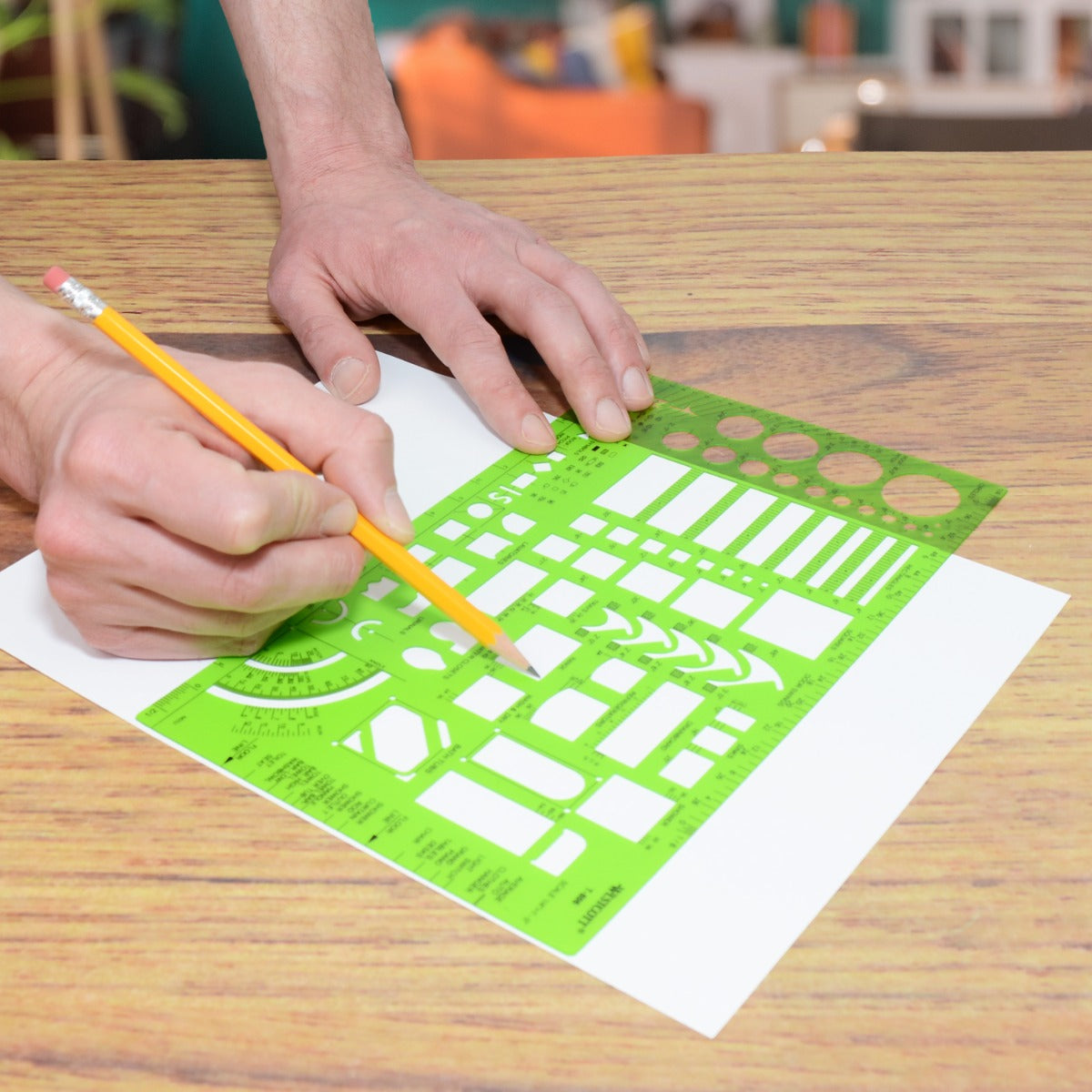

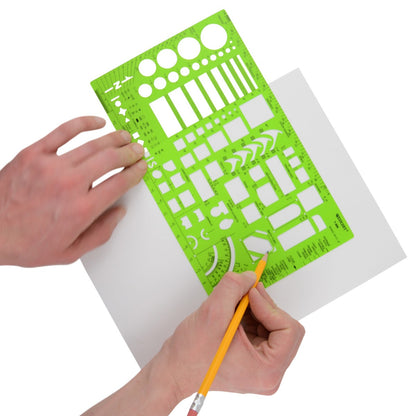

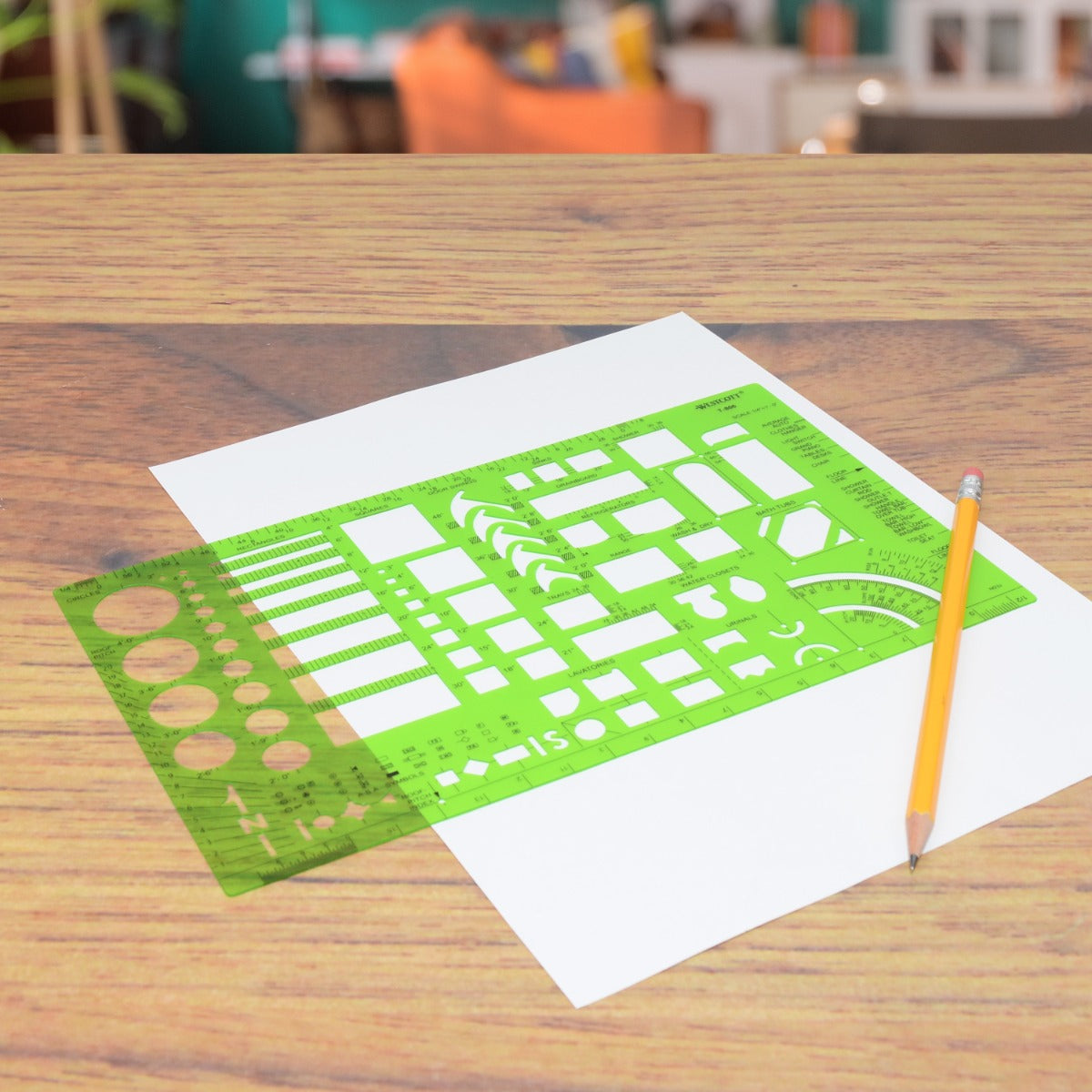

Westcott Architectural Drawing Template (T-806)

Westcott Architectural Drawing Template (T-806)

T-806

view all reviews
Westcott Drafting & Drawing Tools are some of the finest products of their kind for students and professionals. Our commitment to meticulous quality and cutting edge innovation in measurement and art materials has earned an unparalleled reputation.
$6.80 USD
$6.80 USD
Save % OFF Sold out
Shipping calculated at checkout.
Package quantity
Price:

$6.80

Size: Single
View full details
  • Description
  • Additional Information
  • Reviews
  • Questions

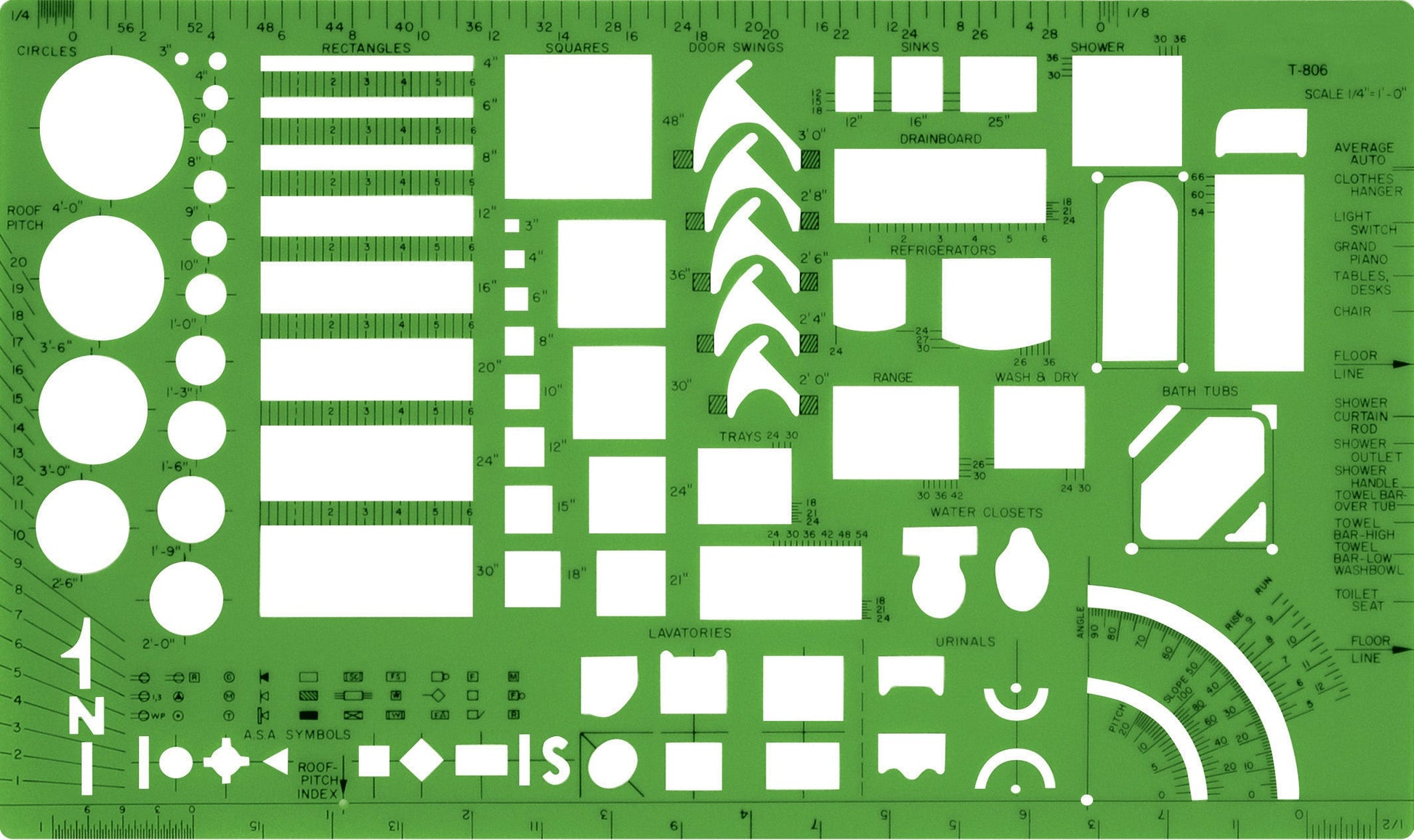

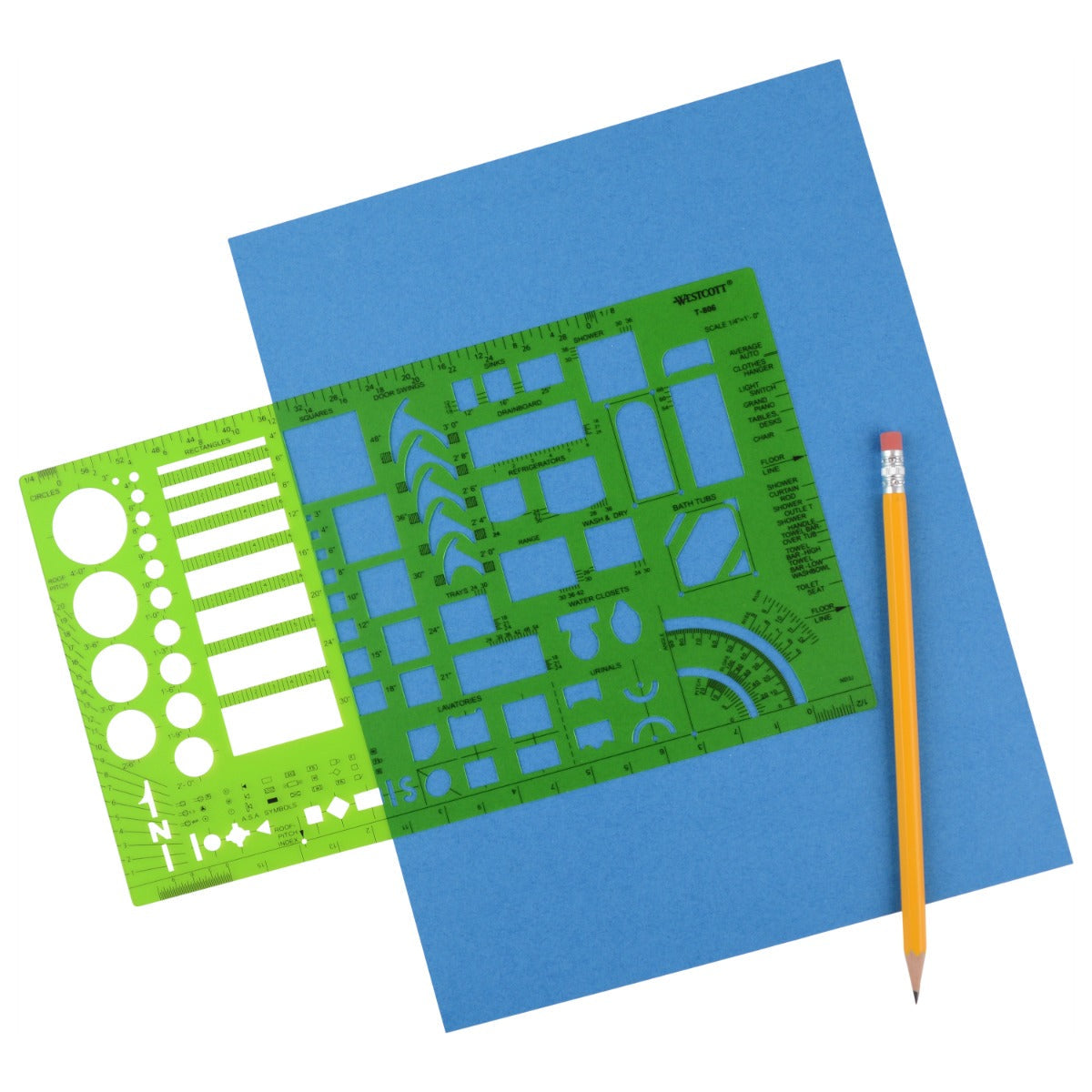

  • Scale ¼" equals 1 foot
  • Includes fixtures and appliances, ASA symbols roof pitch, gauge, protractor feature with slope, rise and run
  • Scaled in ", ¼", ½" and 1" to the foot
  • Translucent color allowing for viewing through to the page
  • Perfect for use in the home or classroom
Length 12.13
Width 6.38
Height 0.06
